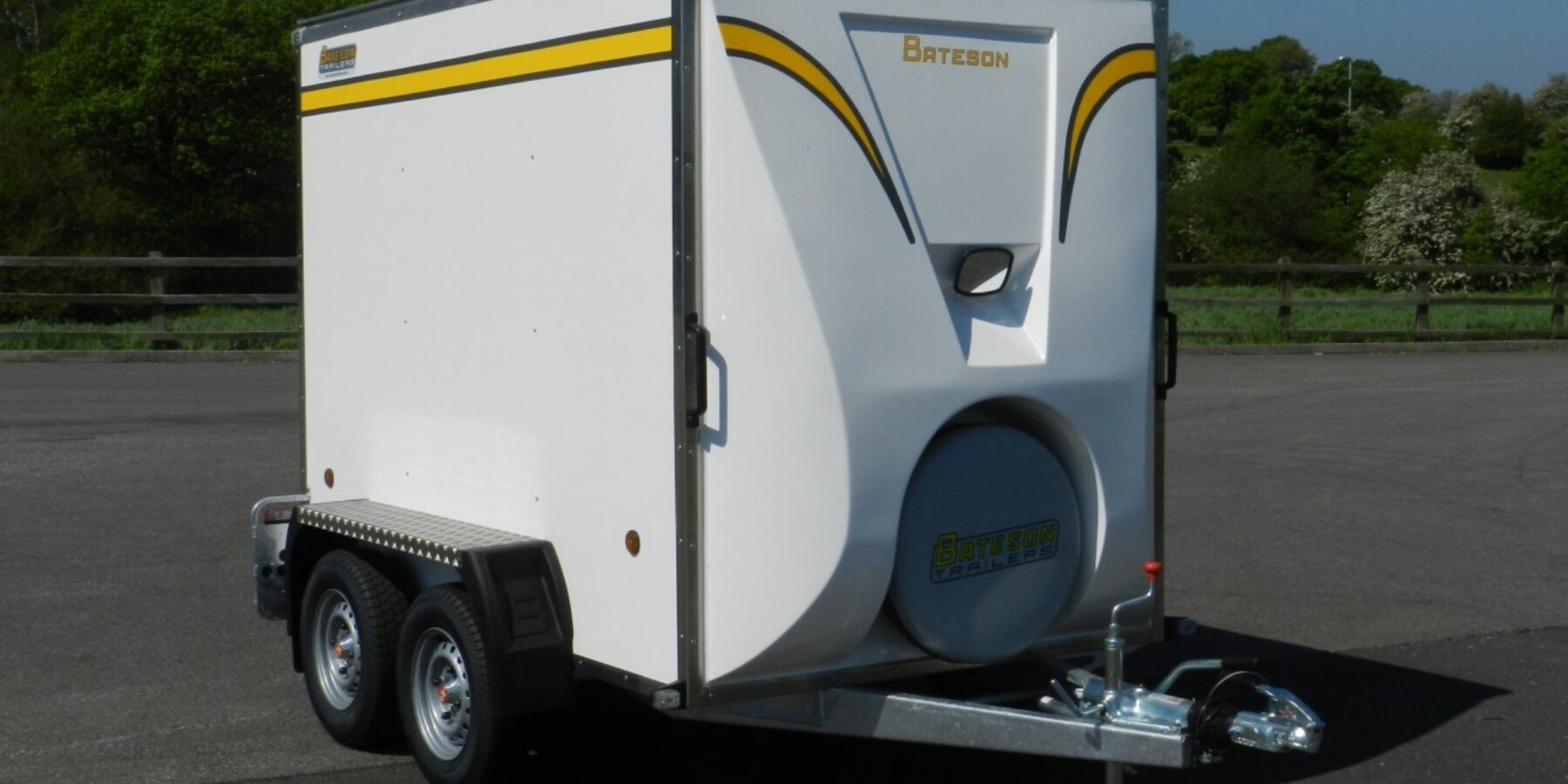

The 240V is a sturdy, compact van trailer with galvanised steel chassis and internal steel frame with strong lashing rings just above the floor level. The sides are protected inside by galvanised steel load securing rails.
The trailer is panelled with high gloss glass fibre plywood laminate one piece side sheets, with 18mm phenol coated none slip floor and a translucent glass fibre roof.
The aerodynamic from is glass fibre with an 18mm ply internal bulkhead which also provides storage pockets for load securing equipment. The front incorporates a spare wheel and carrier and an ingenious mirror which allows the trailer hitch and vehicle tow ball to be seen by the driver during coupling, eliminating misalignment and damaged bumpers.
Auto-reversing over-run brakes are fitted as standard with a cast coupling and integral jockey wheel. Avonride softride axles are fitted as standard giving a smooth ride even when unladen. The 240V has galvanised axles and the mudguards are sealed to the body and have special damage resistant end mouldings. The rear lamps incorporate all functions in one stylish unit and are mounted on the steel brackets wired with a waterproof junction box to a standard type N 7 pin plug, the reversing lights can be connected if a 13 pin plug is used.

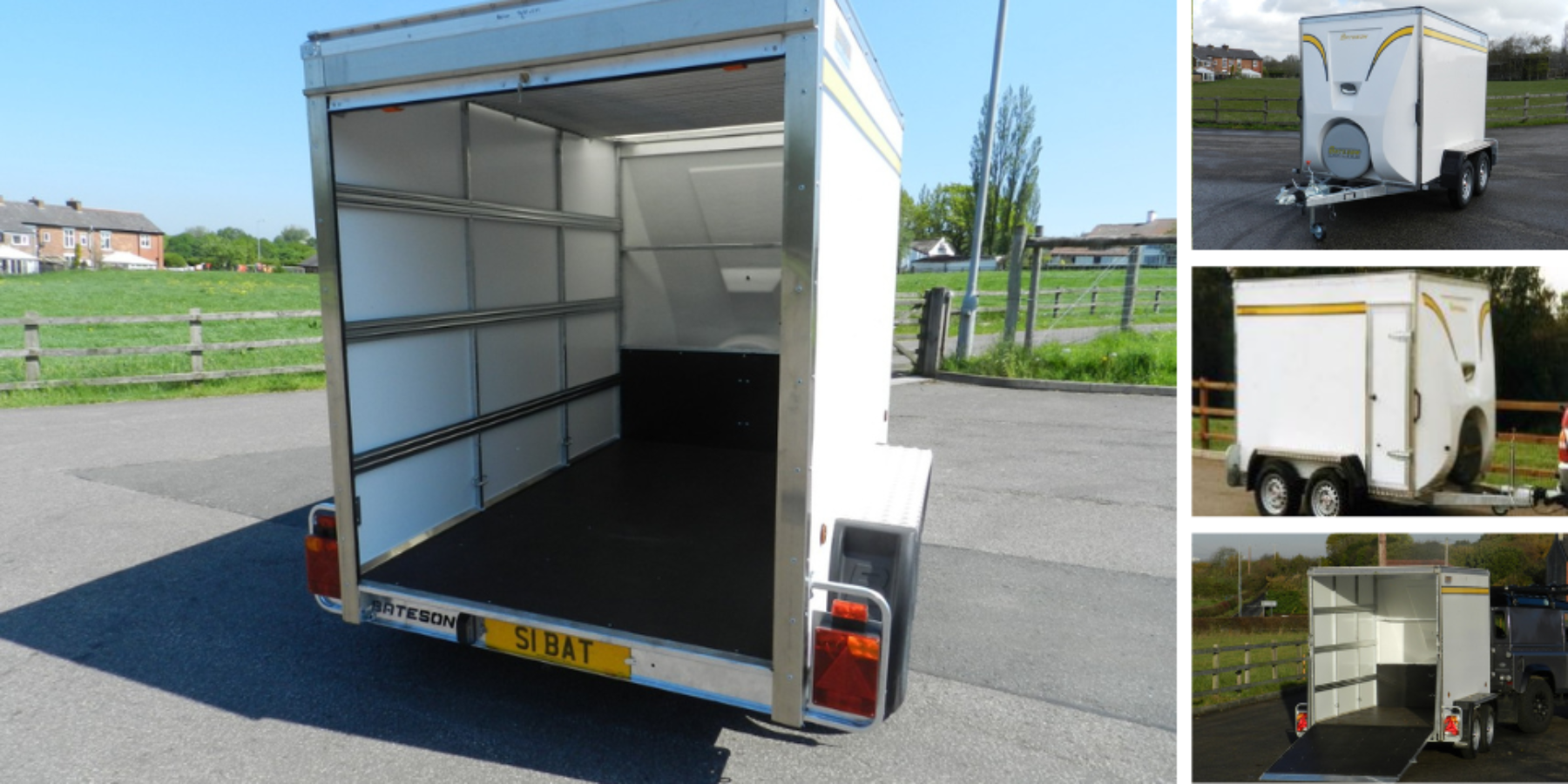

The rear door can be either the standard roof mounted aluminium roller shutter or optional double side hinged van door with a container type lock or a heavy duty spring assisted full height ramp (allow approximately 50kg increase in unladen weight).
Trailer Specification
- External Dimensions: (L) 3750mm x (W) 2030mm x (H) 2280mm
- Internal Dimensions: (L) 2400mm x (W) 1480mm x (H) 1710mm
- Unladen Weight: 550kg
- Maximum Gross Weight: 2000kg
- Tyre Size: 165 x 13
- Tow Ball Height: 400
Dimensions and Weights Are Guides Only
