7' x 4' Small twin axle unbraked platform trailer

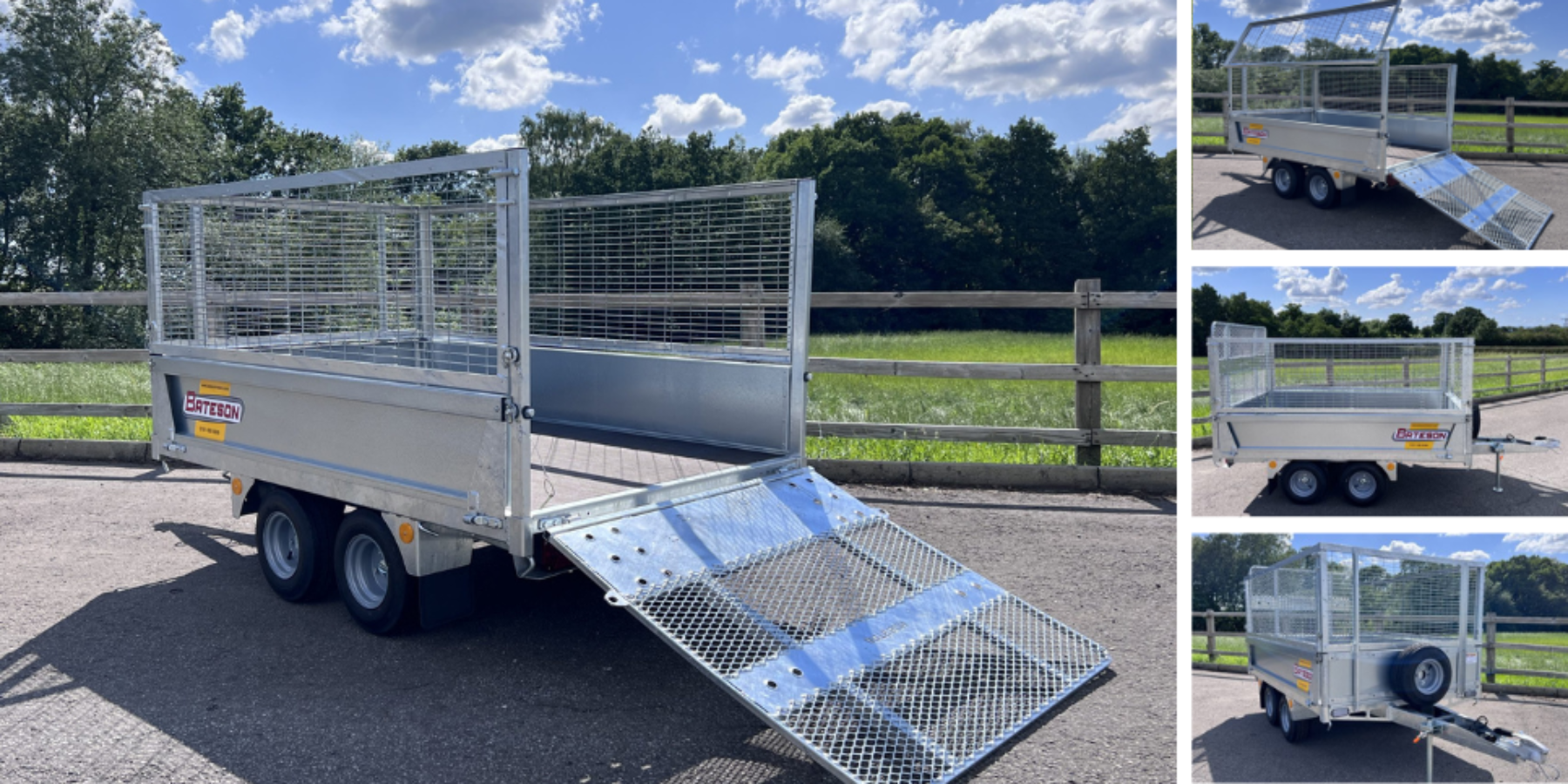

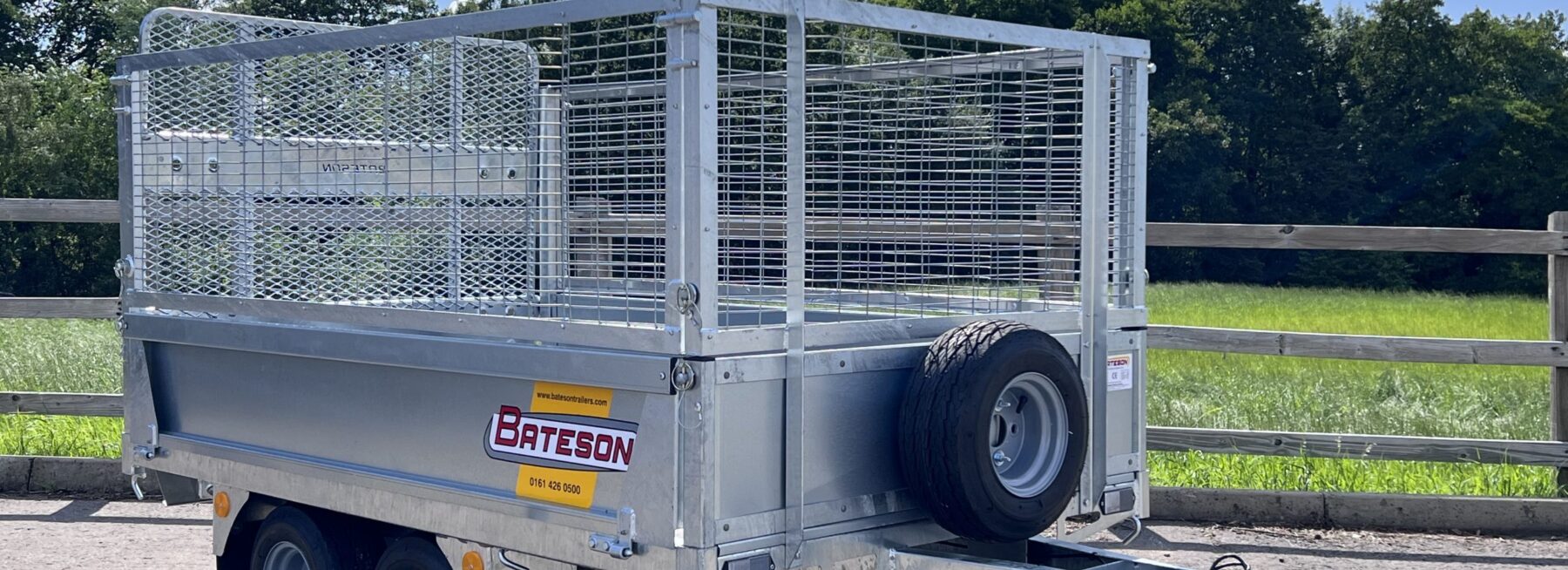

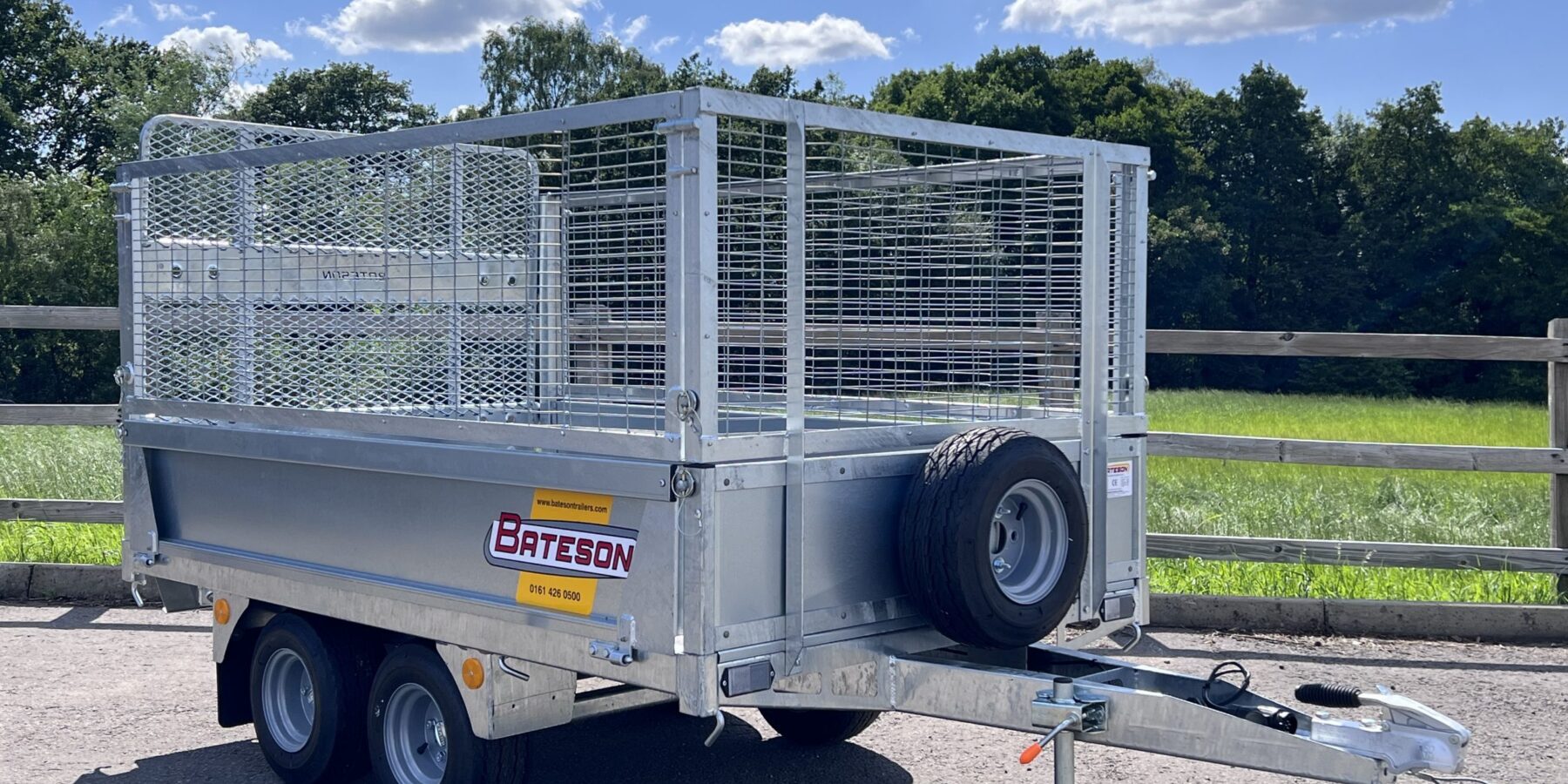

Shown fitted with optional ramp door and mesh extension sides .
Model 720 is a lightweight fully galvanised general purpose trailer, for use on or off road.
With a gross weight of 750kg, it does not require overrun brakes and is suitable for use behind most cars, quad bikes and small tractors.
The construction is of a similar heavy duty standard to that of our larger trailers, with an 18mm non slip phenol coated floor and removable 30cm high hinged sides and tailboard folded from 2mm pre galvanised steel, with lift out front panel and rear corner posts.
Standard equipment includes full width axles with independent rubber suspension, cast 50 mm lockable ball hitch with an extended handle for ease of operation, front prop stand, rear lights, stop/tail light and indicators and 8 rope hooks. Now fitted with mudguards and mud flaps to comply with EU type approval.
Options include a ramp door for loading wheeled equipment and mesh extension sides. The side can be fully opened by hinging the side up and lowering the 30 cm hinged side.
Trailer Specification
- External Dimensions: (L) 3150mm x (W) 1390mm
- Internal Dimensions: (L) 2100mm x (W) 1250mm x (H) 300mm
- Unladen Weight: 236kg
- Maximum Gross Weight: 750kg
- Tyre Size: 16.5 x 6.5 x 8
- Tow Ball Height: 430
Dimensions and Weights Are Guides Only
