3536 3.6m x 2m Platform Trailer

12' x 6'6 3500Kg Platform Trailer

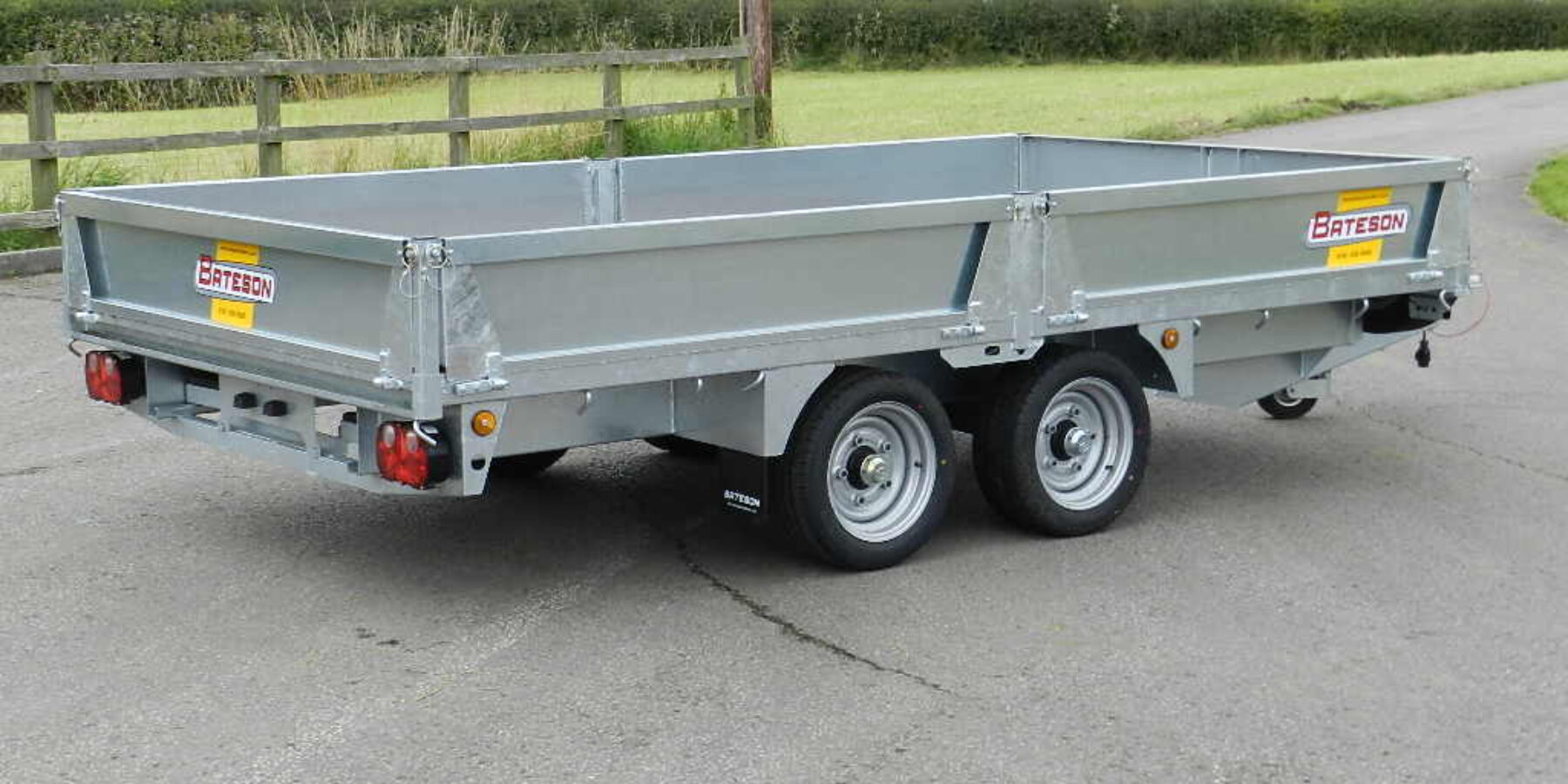

Model shown with optional glavanised steel sides and loading ramps

Model 3536 is a very popular 12 foot 3500Kg platform trailer suitable for use behind most 4x4s. Its 3500 kg gross weight is the maximum permitted weight for a draw bar trailer that does not require an operators licence or be subject to HGV regulations. It is supplied as a flat platform with, full road lights, front jockey wheel and auto reversing overrun brakes.

All trailers in the platform trailer range are fully galvanised, and have Avonride fully independent rubber suspension axles and a hydraulically damped hitch with a lockable cast coupling and power assisted hand brake.

Standard equipment includes a phenol coated plywood floor, flush fitting side rails with post sockets, a front telescopic jockey wheel, full road lights and under body tying rails with load strap securing points (shown on the bottom photograph on the left).

The trailer is often supplied with optional slide in loading ramps and a headboard. Galvanised steel sides, mesh extension sides and a winch are also popular options. It can also be fitted with our 60LT removable livestock container.

Carying capacity will vary with optional specification.

Trailer Specification

  • Dimensions: (L) 3600mm x (W) 2000mm
  • Unladen Weight: 600kg
  • Maximum Gross Weight: 3500kg
  • Tyre Size: 195 - 70 x 13
  • Tow Ball Height: 400

Dimensions and Weights Are Guides Only

Sales, Servicing & Repairs

Our experienced team offer a servicing and repairs facility across all brands of trailers. This service operates from our trailer workshop located within our Trailers and Fencing branch on Henderson Road, Inverness.

Our sales team are on hand to provide specifications and advice regarding our range of trailers and accessories – for more information, get in touch today:

Sandy Murcar

  • sandy.murcar@macgregorsupplies.co.uk
  • 01463 25 6974
